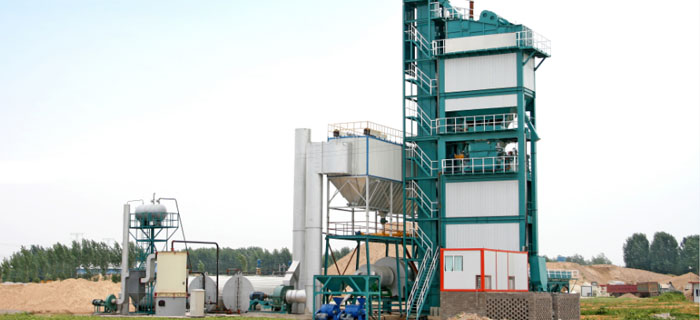

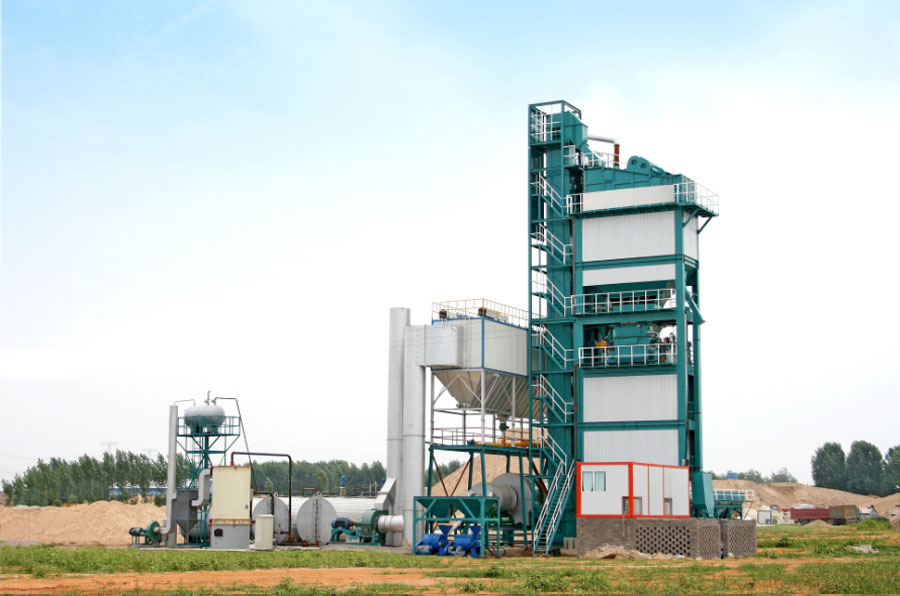

LB Series asphalt concrete mixing plant is an excellent product which combined with advantages of similar products in China and Oversea, designed and produced elaborately according to our national conditions. It has reliable performance, good stability, and easy to be maintained It adopts modular design, has the characters of fast installation, convenient transportation,short installation time, high producing efficiency.
Technical Parameters
| Model | LB4000 | |
|---|---|---|
| Capacity | 320t/h (standard working condition) | |
| Mixer Capacity | 4000kg/batch | |
| Drying Drum | Φ2800*11000mm | |
| Fuel Consumption | Diesel: 5.5-7kg/t; Coal:10kg/t | |
| Measurement Accuracy | Aggregate | ±0.5% |
| Filler | ±0.5% | |
| Bitumen | ±0.25% | |
| Finished Asphalt Temperature | 130℃-165℃ | |
| Dust Collector | gravitational dust collector & Second baghouse dust collector | |
| Air Emissions | ≤20mg/Nm³ | |
| Dark exhaust standard | Ringelmann I | |
| Working room noise | ≤70db(A) | |
| Environment noise | ≤80db(A) | |
| Operation | Full Auto/Manual Operation | |
| Total Installation Power | ≈850kW | |
| Voltage | 220V/380V-50Hz (adjustable) | |
| Plant Covering Area | Length: 70m; width: 60m; max height point: 18m | |
