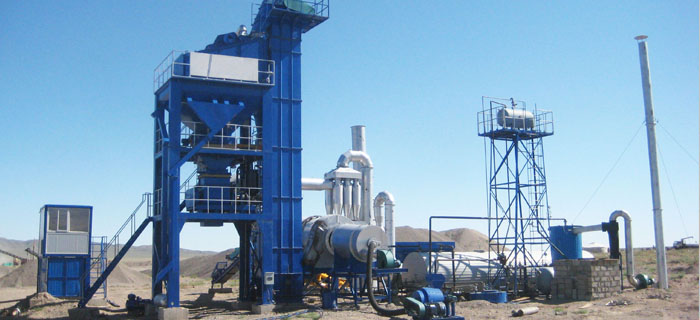

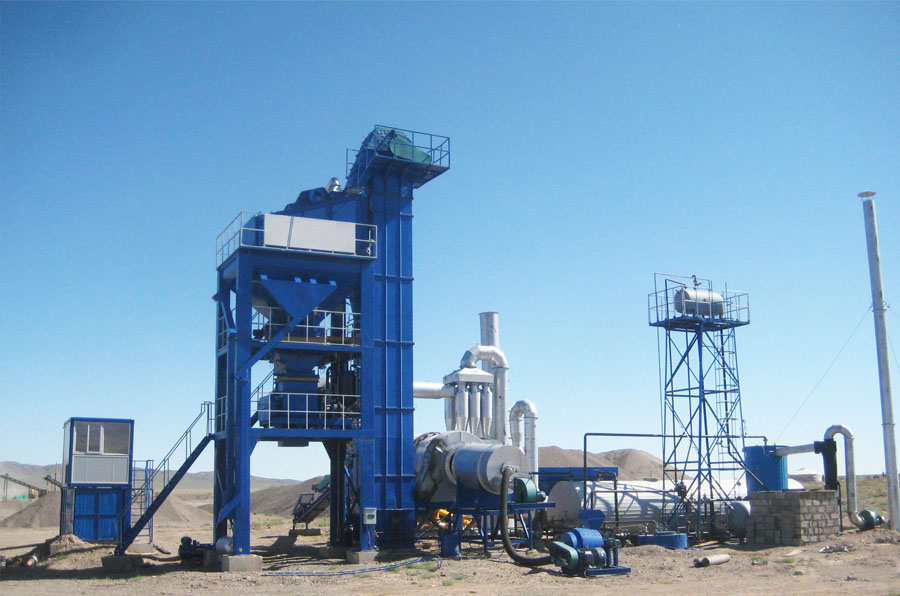

LB3000 asphalt concrete mixing plant is an excellent product which combined with advantages of similar products in China and Oversea, designed and produced elaborately according to our national conditions. It has reliable performance, good stability, and easy to be maintained It adopts modular design, has the characters of fast installation, convenient transportation,short installation time, high producing efficiency.
Technical Parameters
| Model | LB3000 | |
|---|---|---|
| Capacity | 240t/h (standard working condition) | |
| Mixer Capacity | 3000kg/batch | |
| Drying Drum | Φ2800*9000mm | |
| Fuel Consumption | Diesel: 5.5-7kg/t; Coal:10kg/t | |
| Measurement Accuracy | Aggregate | ±0.5% |
| Filler | ±0.5% | |
| Bitumen | ±0.25% | |
| Finished Asphalt Temperature | 130℃-165℃ | |
| Dust Collector | gravitational dust collector & Second baghouse dust collector | |
| Air Emissions | ≤20mg/Nm³ | |
| Dark exhaust standard | Ringelmann I | |
| Working room noise | ≤70db(A) | |
| Environment noise | ≤80db(A) | |
| Operation | Full Auto/Manual Operation | |
| Total Installation Power | ≈700kW | |
| Voltage | 220V/380V-50Hz (adjustable) | |
| Plant Covering Area | Length: 60m; width: 45m; max height point: 17m | |
Advantages of LB3000 asphalt mixing plant
1. LB3000 asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2. All the components of this asphalt mixing plant can put into the container, can greatly reduce transport cost.
3. No foundation and modular design can induce the install and disassembly time to the shortest.
Product Main Future
1. Cold aggregate supply system
Frequency conversion timing with credible capability; modularized design will be convenient for transport.
2. Tilted belt feeding system
Automatically flow middle filter with no vibration will prevent the over sized material entering the drying drum; reduce the heat loss. Avoid jam in the hot aggregate elevator and the vibrating screen.
3. Drying drum
Outside the drying drum is covered with a 50mm heat preservation structure, and inside the drying drum fixing up blades used for lifting aggregate, which can reduce heat loss and ensure the highest thermal efficiency.
The drying drum is driven by four friction wheels, freely link, smoothly and evenly drive.
4. Burning system
The burner is equipped with gas ignition device, with high ignition success rate. It will ensure that first-rank burning effect and drying efficiency.
Burning system uses automatic temperature-control function. It will ensure the best burning effect and drying efficiency.
The burning system can use diesel (heavy oil, gas, coal) as the fuel, through the accurate automatic control to reduce production cost.
5. Hot aggregate elevator
Double rows of chains with double dowels, special structure for outlet will reduce the abrasion and noises.
6. Filler supply system
The outlet of screw conveyor installs butterfly valve to control wallop. Filler temporarily storage silo using high-press air to explode the agglomeration.
7. Pneumatic control system
Pneumatic system uses Germany FESTO air cylinder and electromagnetic valve, with reliable performance and long service life.
