When it comes to asphalt drum mixing plant, there are only a few alternatives to haomei. Our asphalt drum mix plant is of one of the best quality and can be availed through us only. We also supply automatic drum mixing plant which is manufactured according to the specifications of M.O.R.T.H and is designed for the global markets. We also supply our drum mix plant at quite affordable prices so that anyone can avail it easily. We have also become a renowned asphalt mixing plant manufacturer and supplier in china.
Fully Automatic Continious asphalt drum mixing plants are manufactured as per the specifications of M.O.R.T.H. Designed For The International Markets.

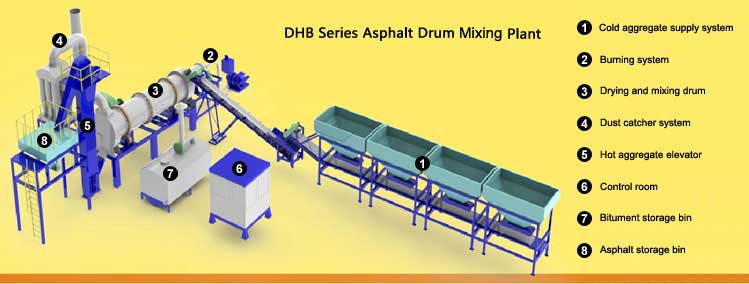

4-Bin Feeder
It is of single chassis construction. At each Bin a radial gate is provided which can be opened in any position to regulate the aggregate flow. Individual endless belts are provided below the gates to discharge material onto the gathering belt.
Vibrating ScreenA single-deck vibrating screen is provided on the slinger conveyor to remove oversize aggregate received from the 4-bin feeder.
Slinger Conveyor
An inclined conveyor mounted on idlers receives aggregate from the gathering conveyor and feeds it to the dryer.
Dryer Drum
The dryer is accurately fabricated to ensure proper heating of aggregates with minimum heat loss. Specially designed flights lift and cascade the aggregate to reduce the final moisture content to 0.5% (by weight). It is supported on steel rollers through steel tyres with idlers and guide rollers and is provided with segmented driving sprocket. A fully automatic high-pressure auto jet burner is mounted at one end of the drum. The discharge chute design discharges heated aggregate directly onto the loadout conveyor.
Bitumen Tanks
One/Two Bitumen Tanks of 15/20 MT. capacity each are provided, fabricated from steel plates with 50 mm glasswool insulation, manhole, thermocouples, etc. Bitumen is pumped to the dryer drum through pipe lines. Tanks are fitted with independent on-off type burners.
Multicyclone Exhaust
The dust collection system consists of enclosed multiple cyclones, exhaust fan and chimney.
Load Out Conveyor
Mixed aggregate from the dryer drum is discharged on an inclined conveyor provided with a hydraulic hopper at delivery end for feeding the Mix into Tippers.
Mineral Filler
Fabricated from steel plates, it feeds the required quantity of mineral to the drum.
Control Cabin
A fully automatic control panel with feather touch controls is provided for controlling the quantity and quality of production with operator sitting in Air-conditioned comfort. All systems are completely synchronized with automatic / manual control of burners, load cells, mix temperature, cold feed / mineral / bitumen proportions, etc. Manual control is possible through over-ride system. Adequate safety measures are adopted to avoid overloading, short-circuit, etc.
LDO Tank
One LDO Tank of 2500 / 5000 Ltrs. capacity is provided with each plant.
Miscellaneous
All components used in asphalt mix plant are of top quality, with ISI Certification wherever available.
All moving parts and electrical parts of asphalt mix plant are provided with safety covers.
Ease of lubrication and dismantling has been built into the design for efficient maintenance and repair.
Fabricated parts of asphalt mix plant are thoroughly cleaned and treated before painting.
Manufacturing of asphalt mix plant is done with advanced, internationally recognised techniques.
Optionals
Wet type air pollution control system.
Baghouse filter system.
Hot mix storage silo.
Portable plants.
Higher capacity tanks avaliable on specific request.
Technical Parameters
| Model | DHB20 | DHB40 | DHB60 | DHB80 |
|---|---|---|---|---|
| Rated capacity(t/h) | 20 | 40 | 60 | 80 |
| Cold hopper (m3) | 1×3.5 | 4×4 | 4×6.5 | 4×8 |
| Drying drum (Diameter ×Length) | 1.2×5.2 | 1.2×5.0 | 1.5×6.5 | 1.5×8.0 |
| Overall dimension(Length×Width×Height) | 15×12×6 | 30×16×6 | 33×19×12 | 38×23×12 |
| Installed power(kw) | 26 | 58 | 99 | 196 |
Product Features
Easy Operation And Less Maintenance
Designed for The International Market
Modern Drum Mix Technology
Produces High Production Rate
Portable of Stationery
Low Dust Emissions
Proper Drying And Homogeneous Mixing of Aggregate
Modular Design for Containerized transport
Proper Asphalt Coating and Saving
Easy to Operate
Less Fuel Consumption
Fully Automatic Computerized Control Panel Board
Accuracy in Quality Control
