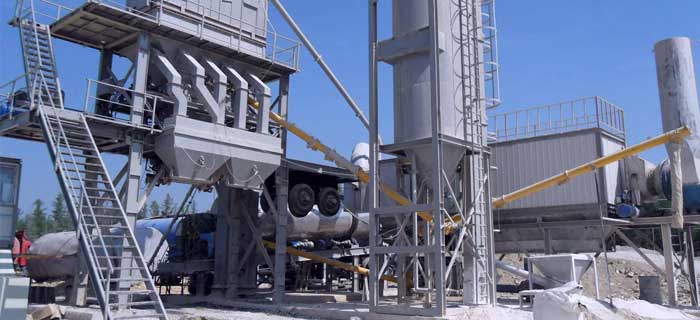

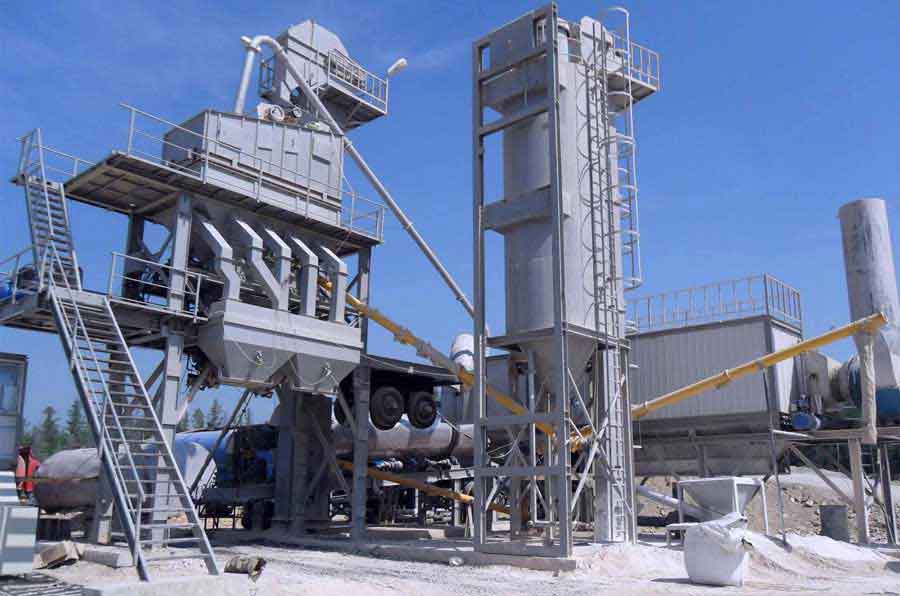

YLB Mobile Asphalt Plant

On 10 August, 2014 By Haomei Asphalt Plant With 12 Comments

YLB Series mobile asphalt mixing plant is designed on the basise of LB series asphalt mixing plant, not only retains the advantages of LB series asphalt mixing plant, such as accurate screening & weighting, batch mix, and high quality asphalt, but also increased moving fast, easy installation features.

YLB Series mobile asphalt mixing plant is modular in design, compact structure, all the major components, such as cold aggregate supply system, drying drum, mixing tower, dust collector system, bitumen supply system, powder supply system, etc., can be hauled overall without any disassembly, transitions quickly and easily. YLB Series mobile asphalt mixing plant can greatly save the time and costs of installation.

Mobile asphalt batching plant manufacturer in China. Supplier of portable asphalt batch plant, asphalt batch mix plant. High quality and good price

There are very few available products to compete with Haomei 's reputable and globally marketed Mobile Asphalt Plant. Available from us at relatively low cost, the product has high functionality and provides operators with a highly efficient machine allowing for effective and totally satisfying road construction. Our international and domestic clients are engaged in constructing roads on a small to medium scale. Haomei's Mobile Asphalt Mixing Plant accommodates operator’s total needs by being easily moved from location to location with relative ease, allowing for speedy assembly and operational use.

Acquiring Haomei 's Mobile Asphalt Drum Mix Plant requires minimal maintenance and will provide operators with years of guaranteed service under all road construction requirements and conditions. Thus, we are counted among one of the most reliable Manufacturers and Exporters of Mobile Asphalt Plant in china.

Technical Parameters

Model		YLB600	YLB800	YLB1000	YLB1500	YLB2000
Capacity		48 t/h	64 t/h	80 t/h	120 t/h	160 t/h
Mixer Capacity		600 kg/batch	800 kg/batch	1000 kg/batch	1500 kg/batch	2000 kg/batch
Fuel Consumption		Diesel consumption: 5.5-7 kg/ton
Weighing Precision		Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2%
Hot Asphalt Temperature		130℃-165℃ (adjustable)
Air Emissions		≤ 20 mg/Nm³
Working Noise		≤ 70 db(A)
Operation		Full Auto/Manual Operation
Installation Power		167 kW	208 kW	266 kW	333 kW	347 kW
Voltage		220V/380V-50Hz (adjustable)
Plant Covering Area	Length	35 m	40 m	40 m	45 m	50 m
	Width	28 m	30 m	30 m	35 m	40 m
	Height	15 m	15 m	15 m	17 m	17 m
Total Weight		79 t	115 t	128 t	153 t	205 t
Documents		Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate.

Product Features

1.Modular design, convenient and fast to move and install.

2.Screening, hot storage, weighting and mixing are on one folding frame, can realize main tower "one truck to trail".

3.Few transport vehicle, installation foundation need no special handle.

4.Compact design, cover very small area.

5.Accurate screening, weighting, batch mix can guarantee high quality.

6.International classic quality control system, has long distance fault detect and maintain function.

7.Each integration trailer is designed with "distributed" power distribution cabinet; all the connecting cables are connected before delivery, more convenient and safe.

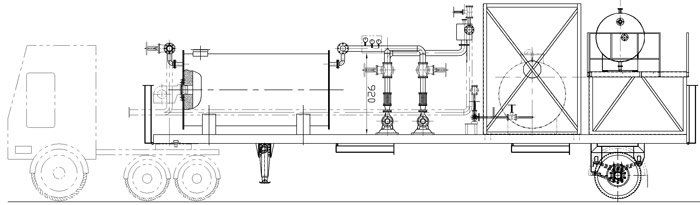

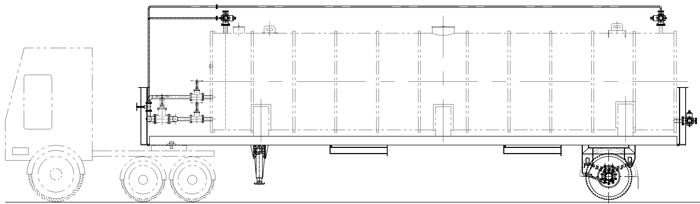

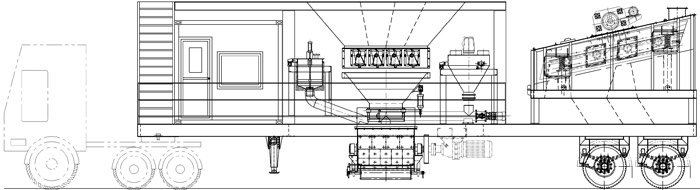

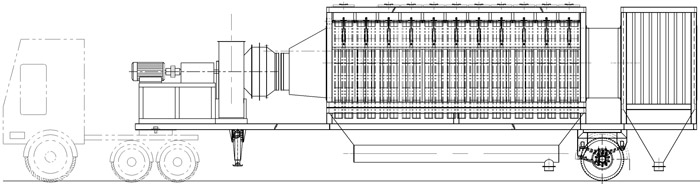

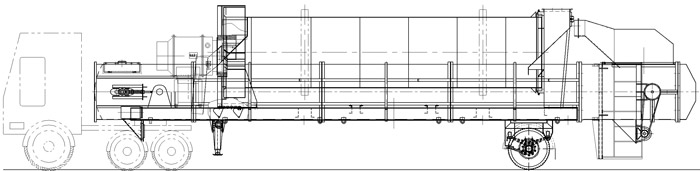

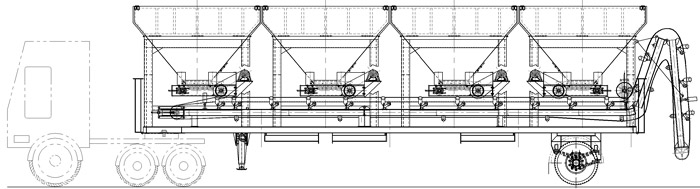

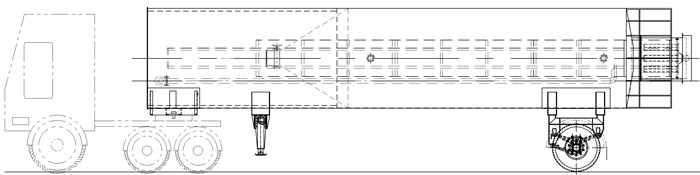

ylb mobile asphalt plant technical drawing
