QLB Mobile Asphalt Plant are twin-shaft asphalt mixing plant. Integrated design of batch type drying drum and horizontal twin-shaft mixer.
The capacity of QLB mobile asphalt plants is from 10 TPH to 80 TPH.
QLB mobile asphalt mixing plant features modularized structure, which means it is convenient to assemble, dismantle and transfer. The mechanical links of parts all use flange and possess guide-localization parts. And the transfering time is shorted to be two-thirds of fixed-style plant and the expense is cut to be one third. Still, QLB asphalt mixing plant features high quality and efficiency.
Mobile asphalt batching plant manufacturer in China. Supplier of portable asphalt batch plant, asphalt batch mix plant. High quality and good price
There are very few available products to compete with Haomei 's reputable and globally marketed Mobile Asphalt Plant. Available from us at relatively low cost, the product has high functionality and provides operators with a highly efficient machine allowing for effective and totally satisfying road construction. Our international and domestic clients are engaged in constructing roads on a small to medium scale. Haomei's Mobile Asphalt Mixing Plant accommodates operator’s total needs by being easily moved from location to location with relative ease, allowing for speedy assembly and operational use.
Acquiring Haomei 's Mobile Asphalt Drum Mix Plant requires minimal maintenance and will provide operators with years of guaranteed service under all road construction requirements and conditions. Thus, we are counted among one of the most reliable Manufacturers and Exporters of Mobile Asphalt Plant in china.

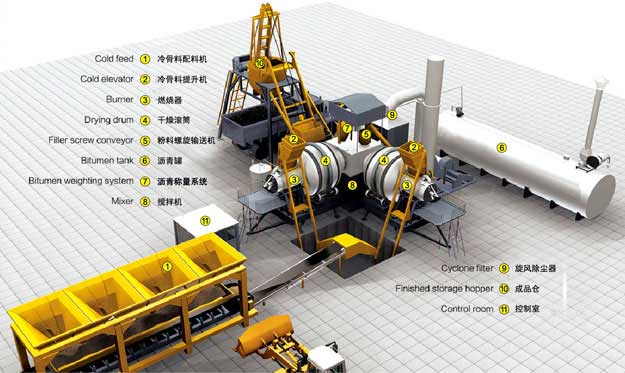

Main Structure of QLB Mobile Asphalt Mixing Plant
Technical Parameters
| Model | QLB-10 | QLB-15 | QLB-20 | QLB-30 | QLB-40 | QLB-60 | QLB-80 | |
| Capacity | 10t/h | 15t/h | 20t/h | 30t/h | 40t/h | 60t/h | 80t/h | |
| Total Power | Fuel Oil | 41.5kW | 54kW | 63.5kW | 104.5kW | 125kW | 157.5kW | 200kW |
| Fuel Coal | 57.5kW | 75kW | 86.5kW | 127.5kW | 169kW | 205kW | 276kW | |
| Aggregate Batcher | 2.3m3*3 | 2.3m3*3 | 2.3m3*3 | 5m3*3 | 5m3*3 | 5m3*3 | 5m3*4 | |
| Finished Asphalt Storage Bin | 2t | 5t | 5t | 9t | 9t | 9t | 20t | |
| Asphalt Temperature | 120-180°C (adjustable) | |||||||
| Fuel Consumption | Fuel Oil: 5-7.5 kg/t; Fuel Coal: 13-15 kg/t | |||||||
| Optional Components | Water dust collector, Baghouse dust collector, Control room, Bitumen heating tank | |||||||
Product Features
● Integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt;
● Accurate weighing, and stable quality;
● Simple structure, easy operation, drying while drum rotate in counter clockwise direction (from burner), discharging while drum rotates in clockwise direction (from burner), and the wind are swirled in the center of the drum;
● PLC control, touch screen, auto/manual switchable;
● Towing chassis of easy transport and installation;
● Burner is available for coal and oil, at client's option;
● Stable and reliable, easy for maintenance.
